User's Guide for Windows

Fix Damaged Partition Boot Sector

If volume looks OK for the disk you are recovering (you see all volumes in the Explorer Tree), but Windows still does not recognize a volume, or says "Volume is inaccessible" , it is possible that Partition Boot Sector (or Copy of Boot Sector) is damaged by virus or overwritten. You can try to use Fix Boot Sector command to replace Primary Boot Sector with its Copy (or backward), or both of them from the set of templates (typical boot sector). The idea is the same as for the Manual Volume Recovery Mode.

To fix damaged Partition (Volume) Boot Sector:

1. Select the volume (logical disk) you want to fix Boot Sector for (place cursor on it)
2. In the main window, from the Partition menu, choose Fix Boot Sector... or execute the same command from the context menu

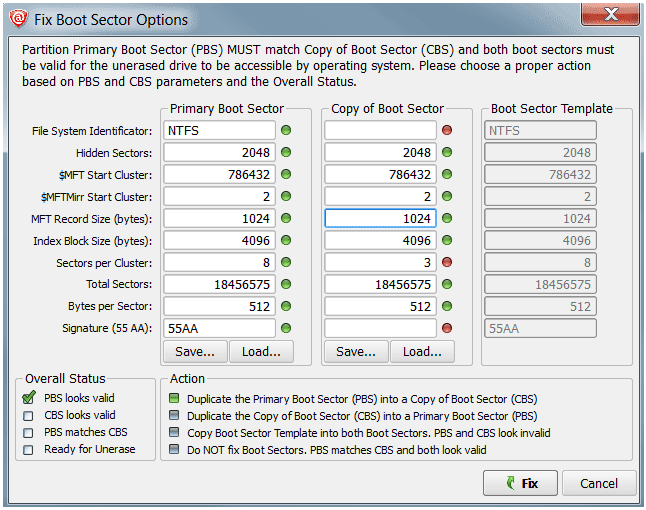

3. In the dialog compare boot sector values, change them if needed, and select an action to execute. Details...
4. Click Fix to confirm the command and wait while list of disks is being refreshed
